ISR Performance RSX3076 Turbo 400-600Hp

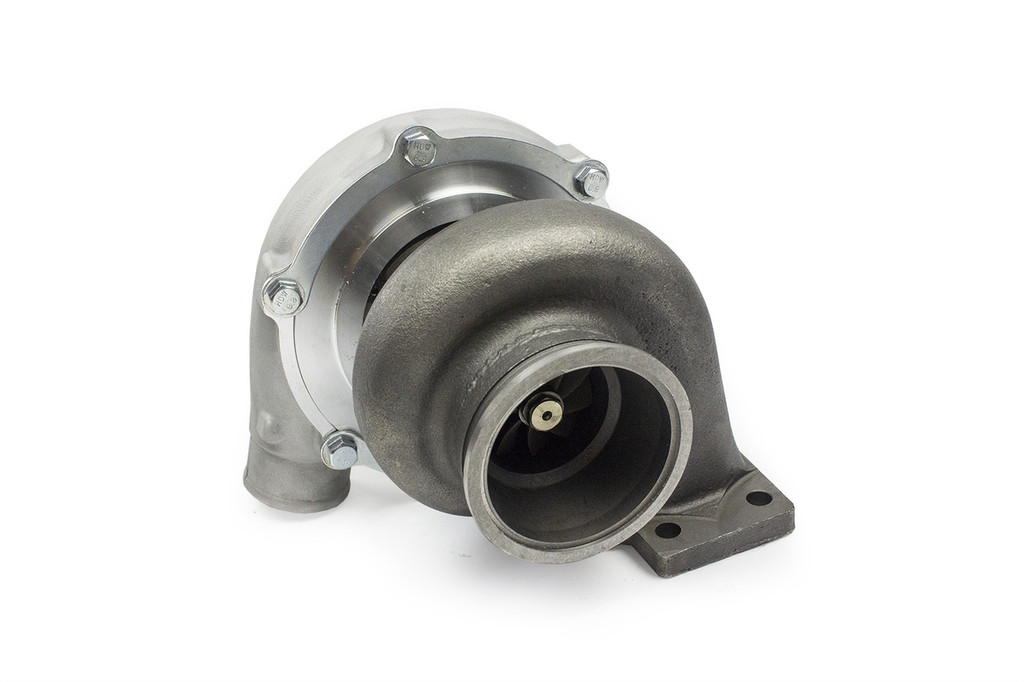

ISR RSX3076 Ball Bearing Turbo Good For 400-600Hp

ISR Performance has expanded its turbocharger lineup with the introduction of larger frame turbos, including the powerful ISR 3076 Turbo. Building on the success and quality of our smaller T2 replacement turbos for the SR20DET, the ISR 3076 is designed for those who seek more power and want to pair an ISR turbo with their top mount manifolds. This turbo is not only ideal for SR20DET engines but is also compatible with KA, RB, and JZ engines, making it a versatile choice for various high-performance builds.

The ISR 3076 Turbo is equipped with dual ball bearings and billet compressor wheels, ensuring quick spool times and efficient power delivery. With a 90mm V-band discharge flange, this turbo offers both big power and great response, making it perfect for enthusiasts looking to push their engines to the next level.

Turbo Specifications:

• Compressor side: 4" inlet, 2" outlet
• Exhaust side: 0.64 or 0.82 A/R T3 turbine housing
• Compressor Wheel: IND 58mm, EXD 76mm
• Turbine Wheel: IND 60mm, EXD 55mm
• Dual ball bearing
• GT style drain flange
• Water-cooled
• HP Rating: 400-600HP

Additional Recommended Parts:

• Oil Restrictor: Part # IS-OR-3036 (REQUIRES OIL RESTRICTOR .036" -.040")
• Drain Flange: Part # IS-GTDRN
• Outlet Flange: Part # IS-FLA-090MM
• Clamp: Part # IS-CL-090MM

Whether you're building a high-horsepower SR20DET, KA, RB, or JZ engine, the ISR 3076 Turbo delivers the performance, reliability, and efficiency you need to achieve your power goals.
